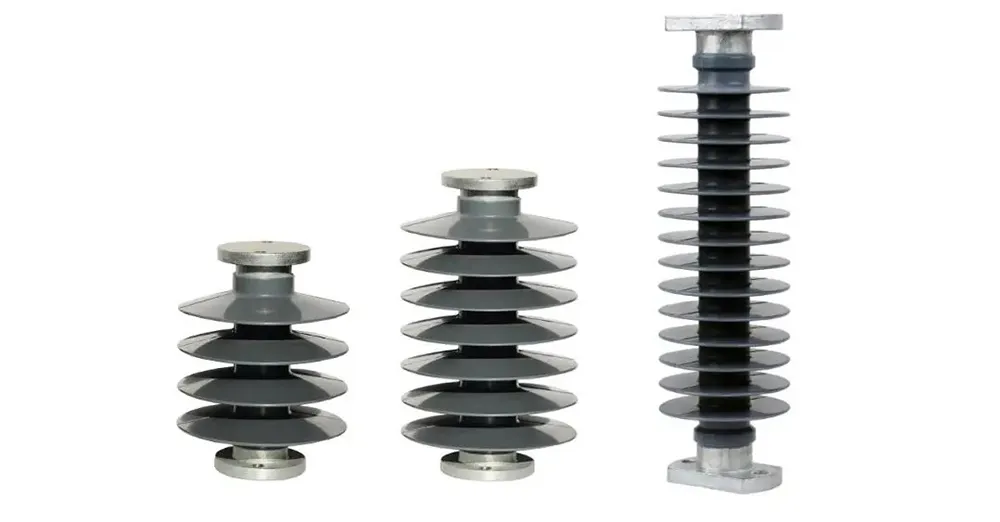

FZS-33 Polymer Insulator

Polymer insulator has pin, post and suspension type rated from 10kV to 36kV, which housed by silicone rubber has good property such as water-proof, anti-ageing,
tracking-proof, anti-corrosion, anti-impulse, shaking-proof, high strength, light weight,easy installation etc.It guarantees electrical insulation and mechanical mounting for overhead distribution and transmission line.
Technical Standard: IEC61109, IEC61952, ANSI C29 latest standard.

Request a Quote

Overview

Polymer insulator

FZS-33 Polymer Insulator for Overhead-Line Insulation

FZS-33 Polymer Insulator is a silicone-rubber polymer insulator family for overhead distribution and substation insulation. The authenticated supplier tables publish 10–36 rated-voltage rows, mechanical bending-load options and insulation dimensions for pin, suspension and post-type arrangements.

Rated-voltage range: 10–36 kV
Mechanical bending load: 4–13 kN
Impulse withstand: 95–250 kV
Creepage / insulation distance: Table-specific rows

The source publishes model-specific electrical and mechanical values but does not state a single standard for every row. Confirm the applicable IEC/ANSI edition and project acceptance documents before ordering.

Request a configuration review Browse polymer insulators

Published technical data

FZS-33 Polymer Insulator Technical Parameters

The tables below are transcribed from the target model’s authenticated WordPress source. Keep the type, voltage class, mechanical load and insulation distances together when selecting a model.

Pin-type / product-family table

Model	Rated Voltage	Rated Mecha nical Bending Load	Stucture Height	Creepage distance	Lightning Impulse withstand Voltage	Power-frequency withstand Voltage （wet）
	kV	kN	mm	mm	kV	kV
FPQ3-10/4T20	10~15	4	326	460	95	42
FPQ3-24/5T22	24~27	5	403	700	150	65
FPQ2-24/13T20	24~27	13	298	760	170	80
FPQ2-36/8T22	33~36	8	403	1080	210	110

Suspension-type table

Model	Rated Voltage	Rated Mechanical Bending Load	Stucture Height	Creepage distance	Lightning Impulse withstand Voltage	Power-frequency withstand Voltage （wet）
	kV	kN	mm	mm	kV	kV
FZSW1-15	15	10	178	400	110	42
FZSW1-27	27	8	209	530	150	65
FZSW1-36	36	6	273	750	170	75
FZSW2-36/4	36	4	397	1080	200	95

Post-type table

Model	Rated Voltage	Rated Mechanical Bending Load	Stucture Height	Creepage distance	Lightning Impulse withstand Voltage	Power-frequency withstand Voltage （wet）
	kV	kN	mm	mm	kV	kV
FZSW1-15	15	10	178	400	110	42
FZSW1-27	27	8	209	530	150	65
FZSW1-36	36	6	273	750	170	75
FZSW2-36/4	36	4	397	1080	200	95

The authenticated source contains the technical tables below; confirm the exact model row and unit before ordering.

Selection checklist

Specify the Polymer Insulator for the Line Design

Choose the construction. Identify pin, suspension or post-type arrangement and the required mounting interface.
Match the voltage class. Confirm rated voltage, impulse withstand and power-frequency withstand values against the insulation-coordination study.
Check mechanical duty. State the required bending load, insulating distance, structure height and creepage distance.
Define the environment. Confirm pollution level, altitude, temperature, wind and creepage requirements for the installation.
List documents and quantity. Include drawings, test evidence, packing, destination market and delivery requirements in the RFQ.

Configuration and supply boundary

Review the FZS-33 Configuration

The target source presents model families and dimensional variants. State the exact model code and installation arrangement so the quotation does not mix pin, suspension and post-type data.

Insulation coordination

Confirm rated voltage, impulse withstand, power-frequency withstand, insulating distance and creepage distance.

Mechanical interface

Specify bending load, structure height, hardware and the pole or crossarm interface required on site.

Material and environment

Confirm silicone-rubber housing, end fittings, pollution level, altitude and any corrosion or tracking requirements.

Commercial boundary

Quantity, packing, delivery schedule, private label and project documents remain subject to technical review and quotation.

Company scale

Fuerte at a Glance

FUERTE lists 1985 as its founding year, 220+ employees and a 36,000 m² built-up area. These supplier-published figures provide context for manufacturing and project support.

1985

Founded in

Supplier-published company history

220+

Employees

Published workforce scale

36,000 m²

Built-up area

Published manufacturing footprint

OEM

& ODM support

Subject to technical review

OEM & ODM capability

Custom Support for Polymer-Insulator Projects

FUERTE’s published OEM and ODM scope includes voltage/current adaptation, mounting hardware, nameplates, packaging and shipping marks.

Electrical configurationReview voltage class, insulation levels, creepage distance and service conditions.
Mechanical interfaceConfirm construction type, fittings, mounting dimensions and mechanical load.
Project documentationState drawings, marking, packing, shipping marks and acceptance-document requirements before quotation.

Frequently asked questions

FZS-33 Polymer Insulator FAQ

Which values should be matched first?

Start with construction type, rated voltage, mechanical load, impulse withstand and creepage or insulating distance.

Are pin, suspension and post data interchangeable?

No. The source publishes separate tables. Confirm the exact arrangement and model code before using any row in a purchase specification.

Can the fittings and dimensions be customized?

FUERTE publishes adaptation of mounting hardware and project specifications as an OEM/ODM scope. Availability depends on technical review.

What should be included in a quote request?

State model, construction type, voltage, mechanical load, insulation levels, mounting interface, quantity, destination and required documents.

Configuration review

Send the FZS-33 Requirements

Provide construction type, rated voltage, mechanical load, insulation levels, dimensions, mounting details, quantity, destination market and required documents.
