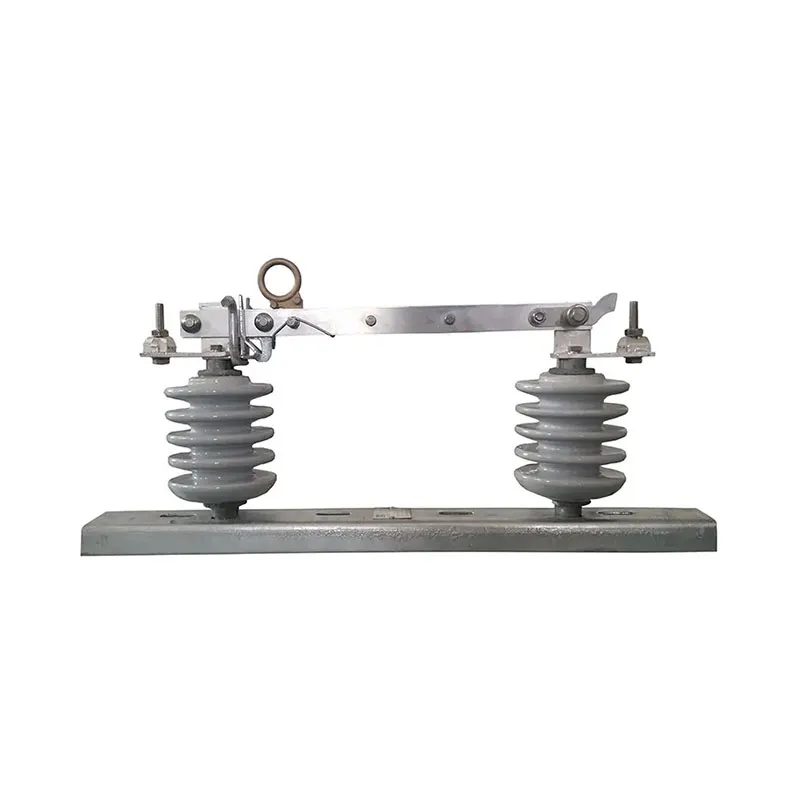

GW13-15 Isolating Switch

The disconnect switch / isolating switch with manual operation mechanism is used for sectionalizing or isolating circuits on outdoor distribution overhead systems up to 38KV.
Characteristic:
Voltage: 12 / 36kV
Current: 400 / 630A
Application: Overhead Distribution Line
Standard: IEC 62271-102

Request a Quote

Overview

Medium-voltage isolating switch

GW13-15 Isolating Switch for Medium-Voltage Distribution Isolation

GW13-15 Isolating Switch is a medium-voltage isolating switch for outdoor distribution isolation. The supplier table lists 12 / 36 kV rated-voltage options, 400 / 630 A rated-current options and 16(for 400A)/ 20(for 630A) kA rated short-circuit withstand current.

Rated voltage: 12 / 36 kV
Rated current: 400 / 630 A
Short-circuit withstand: 16(for 400A)/ 20(for 630A) kA
Impulse withstand: 95 / 170 kV

The supplier source lists IEC 62271-102:2001. Confirm the required standard edition, test documents and project acceptance scope before ordering.

Request a configuration review Browse isolating switches

Published technical data

GW13-15 Isolating Switch Technical Parameters

The table below is transcribed from the target model’s authenticated WordPress source. Confirm the selected voltage, current, withstand level and accessory combination in the RFQ.

Parameter	Published value	Unit
Rated voltage of Disconnector	12 / 36	kV
Rated current	400 / 630	A
Rated frequency	50	Hz
Lighting Impulse withstand voltage	95 / 170	kV
Power frequency withstand voltage in 1 min (Dry)	42 / 70	kV
Power frequency withstand voltage in 10 s (Wet)	36 / 60	kV
Rated short circuit withstand current	16(for 400A)/ 20(for 630A)	kA
Rated short circuit withstand time	3	s
Rated peak withstand current	40(for 400A)/ 50(for 630A)	kA
Creepage	25 / 20	mm/kV
Blade stopped degree in opening position	90	Degree
Spare parts
Mounting bracket	with/without
Terminal clamp	with/without
Loadbuster Hook	with/without
Self locking Mechanism	with
Material
Terminal pads	Brass/Copper plated by silver
Blade	Copper plated by siliver
Insulator	Porcelain / Polymer
Channel Base	Steel hot galvanized
Operating eye	Brass
Package
Qty/package	1	pc/carton
Service conditions
Environment maximum temperature	40	°C
Pollution level	Heavy
Altitude	≤1000	Meter
Standard	IEC 62271-102:2001

Published source values include 50 Hz, 20 mm, 2001. Confirm the exact row and unit in the original technical table when preparing the RFQ.

Confirm system voltage, earthing arrangement, installation altitude, pollution level and required operating duty with the project engineer before final selection.

Selection checklist

Prepare the Isolating-Switch RFQ

Define the system voltage. State nominal system voltage, rated voltage and insulation-coordination values.
Match continuous and short-time duty. Confirm rated current, short-circuit withstand current, peak withstand current and duration.
Choose the arrangement. Identify single-pole or three-pole construction, operating mechanism and rod length where applicable.
Specify installation hardware. Confirm mounting bracket, terminal clamp, line connection, operating eye and crossarm arrangement.
List documents and quantity. Include standard edition, drawings, test evidence, packing quantity, destination and required delivery schedule for quotation.

Configuration and supply boundary

Review the GW13-15 Configuration

The target source lists selectable hardware and material options. State each option explicitly so the quotation reflects the intended field installation.

Electrical coordination

Confirm rated voltage, current, impulse withstand, power-frequency withstand and leakage distance against the project study.

Operating hardware

Depending on the model, specify operating mechanism, arcing-distinguishing chamber, operating rod length, loadbuster hook or self-locking mechanism.

Materials and corrosion protection

The source lists silver-plated copper terminals and blades, porcelain or polymer insulators and hot-galvanized steel bases. Confirm the selected combination.

Commercial boundary

Quantity, packaging, delivery schedule, private label and project documents remain subject to technical review and quotation.
